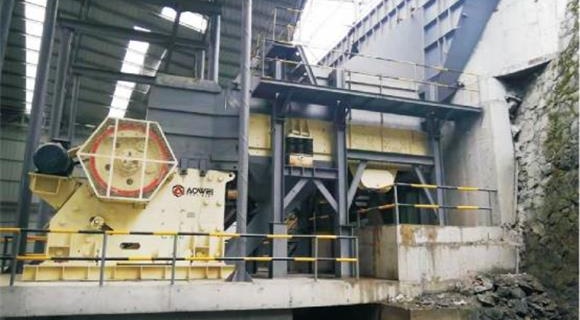

Production site in Shangluo, Shaanxi province

Project Introduction

Raw material: diabase

Capacity requirement: 1200 tons/hour aggregate and machine-made sand;

Dust removal method: dry and wet combination, machine-made sand and fine aggregate washing

Use space: 70m×200m.

Concentrate specifications (mm) : 0 ~ 5 (sand), 5 ~ 10, 10 ~ 15, 15 ~ 20;

General specifications (mm) : 0 ~ 5 (sand), 5 ~ 10, 10 ~ 20, 20 ~ 30 (31.5);

Reserved specification (mm) : Railway slag (28 ~ 63 or 30 ~ 70)

• 1200 tons of diabase hard rock production line equipment configuration
• Two Set of ZSW1860 Feeder
• Two Set of RC140 Jaw Crusher
• Two Set of RGP500S coarse crushing single cylinder hydraulic Cone Crusher
• Two Set of PLS-1200 Vertical Impact Crusher
• Four Set of 3YK3080 Vibrating Screen
• Two Set of 3YK3680 Vibrating Screen
• Two Set of ZG600 variable frequency Feeder
• Two Set of 2XL-914 spiral Sand Washing Machine
• Two Set of ZKB2160 Dehydration Vibrating Screen
