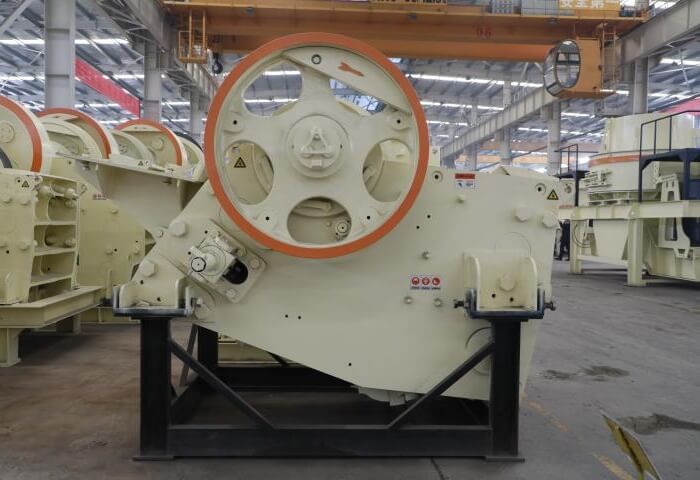

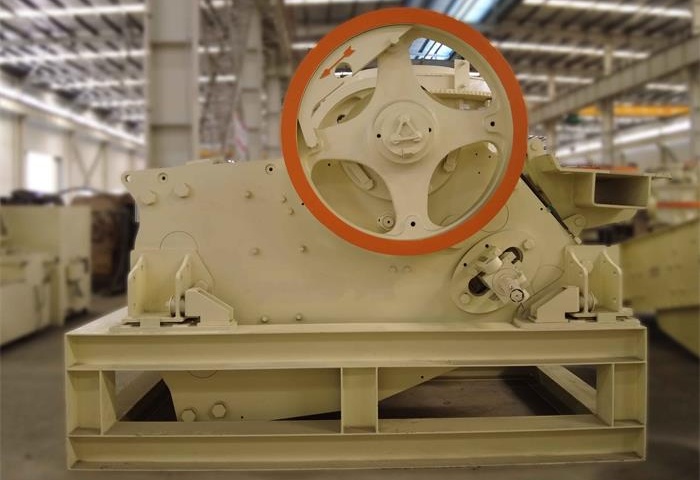

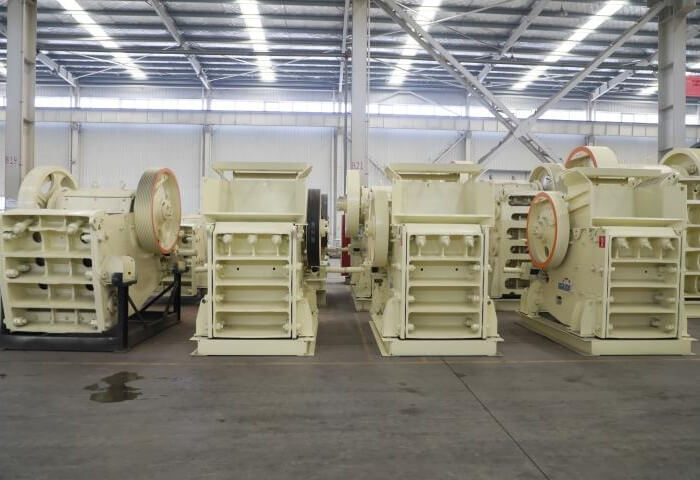

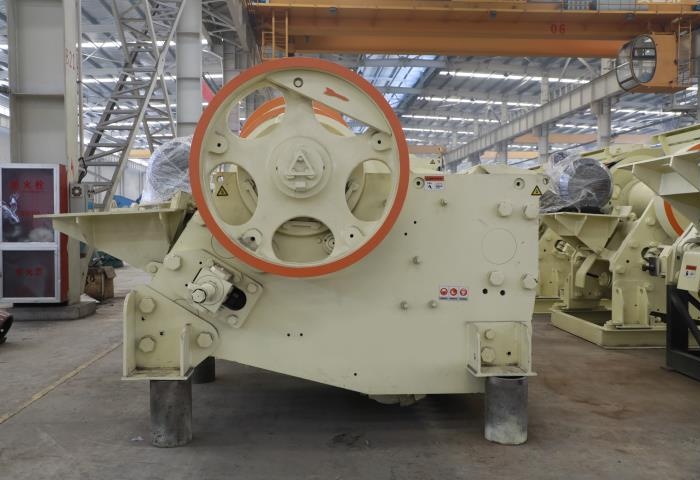

RC JAW CRUSHER

• RC series jaw crusher is a new jaw crusher developed by our company on the basis of absorbing the advanced technology of jaw crusher at home and abroad.Its unique structure, superior performance, is a variety of hard and strong corrosive rock mineral fragmentation preferred equipment. is widely used in mining, metallurgy, building materials, highway, railway, water conservancy and chemical industry and other industries for the coarse crushing of various materials.

• Heavy design, suitable for all kinds of sand and gravel aggregate and mineral processing;
• Large size bearingwith larger bearing capacity,which can be longer service life
• Split type and three different installation structure, suitable for a wide range of working conditions

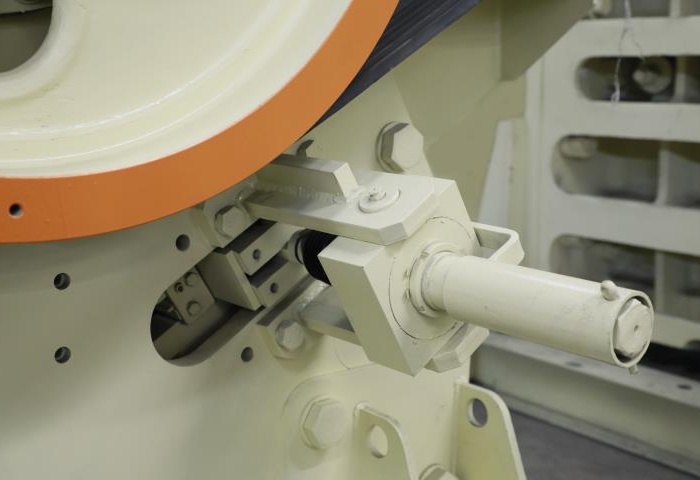

• Wedge type material layout adjustment structure, adjustment more quick and convenient
• Large Angle, reasonable stroke, high speedmaking the output more while the machine is working
• The main engine and motor are installed all in one, and the foundation is connected with the foundation by rubber vibration damping pad, which makes the foundation more simple

• When jaw crusher works, electrical motor drives the V-belt to make the swing jaw move following the specific track by eccentric shaft. After the materials enter into the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.

Choose the Best Match for You

1. RC series jaw crusher has the features of excellent motion characteristics, special chamber design which saves more than 10% energy consumption and has more than 15% bigger throughput.
2. Unique crushing chamber design of RC jaw crusher makes the availability of jaw plate much higher. Jaw plate can be switched four times that achieves evenly attrition. This advances the material availability and prolongs service life.
3. The teeth on jaw plate in crushing chamber faces to aces (swing jaw plate and fixed jaw plate), which is good for crushing hard materials.
4. The structure design of adjustable transmission angle makes higher capacity in the same discharge outlet.
5. Fixed jaw plate and swing jaw plate can be changed for each other. This design will save user’s spare consumption and the assembly is more convenient.
6. The hydraulic adjustment of double-jack for discharge outlet is convenient and labor saving.
7. Swing jaw and main frame can be disassembled easily which is convenient for transportation.
