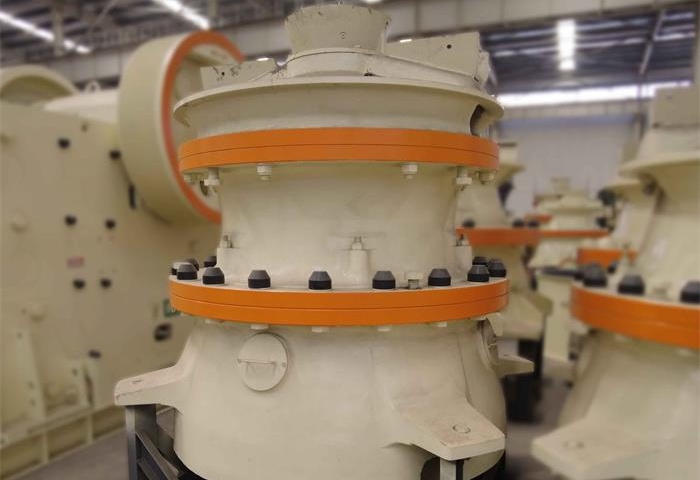

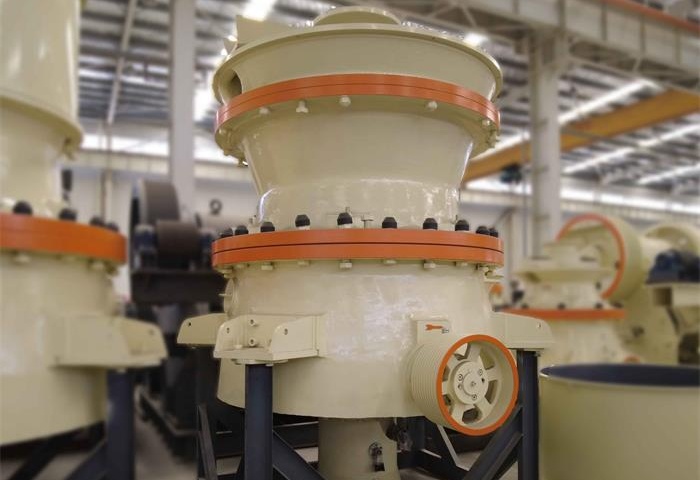

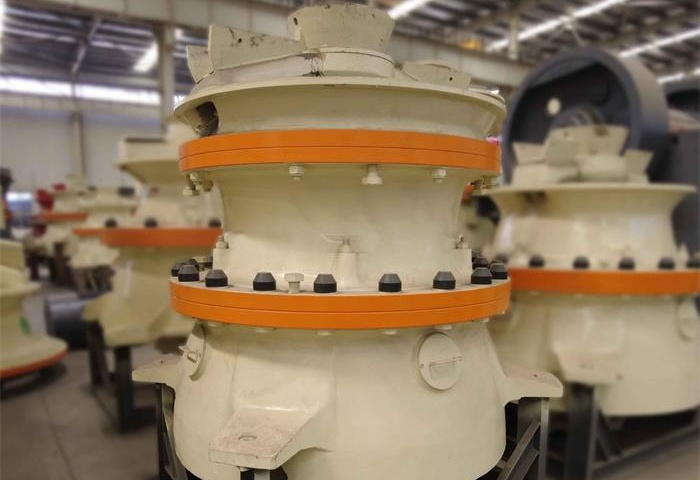

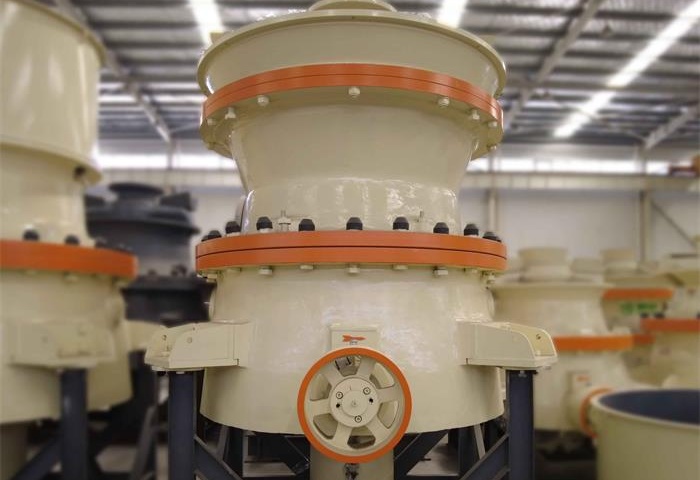

RGPS Single Cylinder Cone Crusher

• RGPS Series Single Cylinder Hydraulic Cone Crusher is one of advanced cone crusher in China, which is developed and manufactured by our company. The machine is one kind of high-class product combined with mechanical technology, electrical technology, hydraulic technology and advanced crushing technology.
• RGP cone crusher adopts high strength casting-steel frame, alloy forging main shaft and high precision arc-shaped spiral gear driving structure, combined with multi-chambers selection and automation control system, which fulfills the performance and advantages. This RGPS cone crusher can be widely used in metal and non-metallic ore, cement, sand, metallurgy and other industries.

• High Reliability: Optimize and improve the product structure, material, processing and assembly process, so as to ensure the reliability of the host machine;
• High Productivity:Scientific and reasonable crushing chamber type, combined with optimal crushing chamber, reasonable eccentricity, optimal swing frequency and laminating crushing principle, the machine has a large throughput capacity, high productivity, good products shape and low energy consumption;
• Wide Applicability: According to different feed and finished material size, match the reasonable cavity type, adopt the steel bottom frame or the motor and the main machine to install in one,  which can be short time-cost and minimum installation cost.
• Low Operating Cost: specially designed cavity type and lining material make the lining plate more efficient, equipped with positive pressure dust control system to ensure the lubricating oil inside the main engine is free from dust pollution

• When the cone crusher works without material, eccentric bushing assembly “cling to” the spindle unit revolve with the rack wheel. When the material enter into the crushing chamber, spindle assembly (spindle, inner cone) rotate slowly inside the eccentric copper bushing under the resistance of material.
• The inner cone is oscillating inside the crushing chamber, which can extruding and crushing the material. When some unbroken materials like metal block falling into the cone crusher, the movable cone rise up by the lower piston, which plays the role of adjusting discharge outlet, iron passing protection and eliminate ore blocking.
