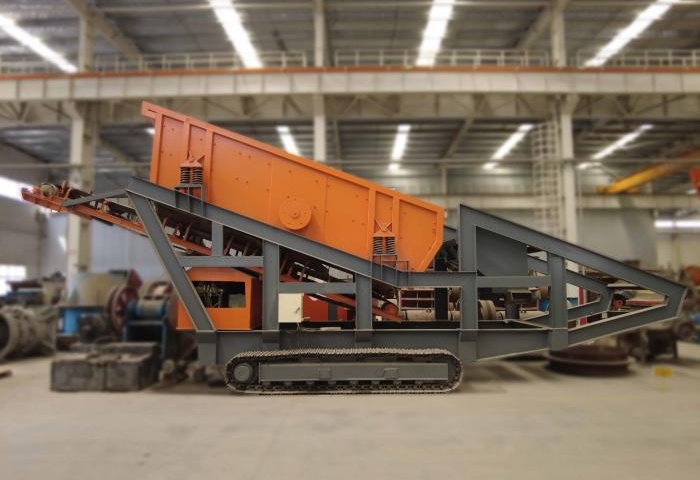

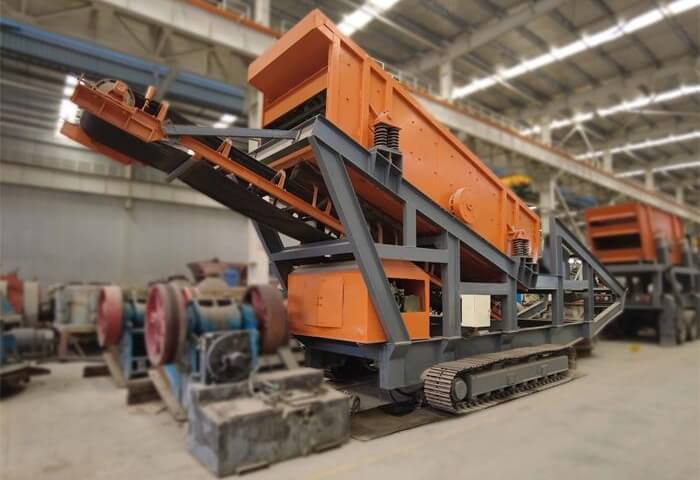

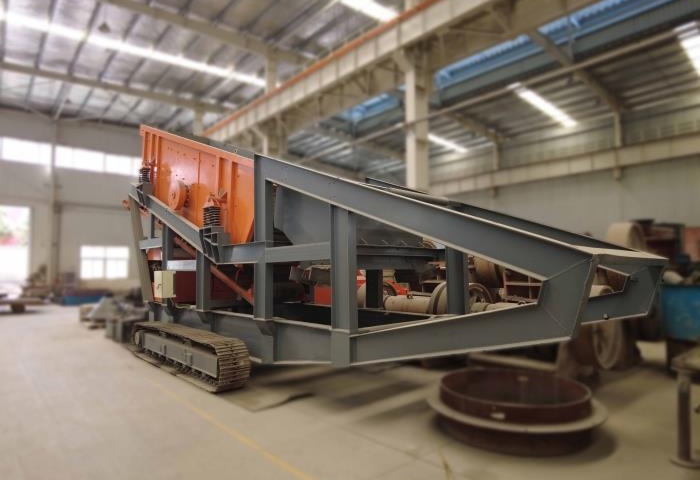

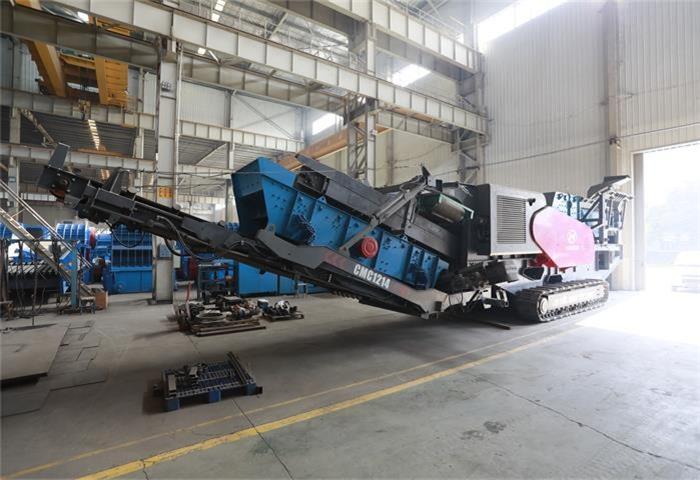

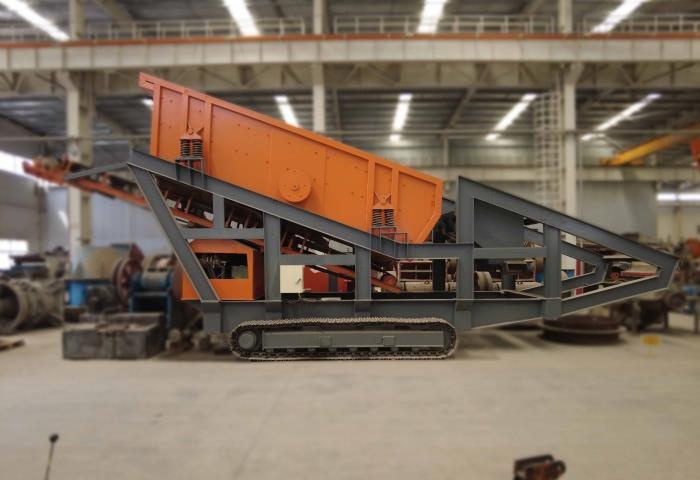

Crawler Mobile Crusher

Final Size: 0-40mm

Capacity: 100-450t/h

Hopper Volume: 8-20m³

Leave Message Chat Now

Description Parameter Recommend

Description

YT Series Crawler Type Mobile Crushing and Screening Plant is assembled by strong and mobile crushing plant after combined by international advanced technology. It is designed by the unit of feeding, crushing, sand making, and drive with crawler chassis, self-engine provided and multi-function. It is truly mobile crushing works through combination of single unit and all the processing is on the chassis.
YT Series Crawler Type Mobile Crushing and Screening Plant is designed by advanced intelligent control system, it is high efficient capacity and controlled by press one button when start or stop working. It can be used to many complicated conditions with compact structure, easy installation, convenient transportation and flexible move. It can produce different kinds of high quality aggregate with flexible combination.The plant is widely used in aggregate crushing and screening works of high express way .high-speed railway, water conservancy, construction,concrete,construction waste, municipal engineering and bridge construction which need to move.

Parameter

Choose the Best Match for You

Model		YT-150	YT-250	YT-350	YT-450
Capacity (t/h)		100-250	150-250	250-350	350-450
Hopper Volume		8m³	10m³	15m³	20m³
Jaw Crusher	Feeder	ZSW380x95	ZSW450x120	ZSW500x130	ZSW600x150
	Jaw Crusher	JC90	JC110	JC125	JC140
	Final Size (mm)	0-120	0-150	0-250	0-300
	Main Conveyor	B800	B1000	B1200	B1400
	Side Conveyor	B500	B650	B650	B800
Impact Crusher	Model	PFQ1113	PFQ1315	PFQ1320	PFQ1515
	Main Conveyor	B650	B800	B1000	B1200
	Final Size (mm)	0-40	0-80	0-80	0-80
Cone Crusher	Model	GPY200	GPY300	GPY300	HPY400
	Main Conveyor	B650	B800	B1000	B1200
	Final Size (mm)	0-40	0-40	0-40	0-40
Chassis with Hydraulic Drive		DH4	DH5	DH6	DH7
Motor		CAT	CAT	CAT	CAT
