Tire Mobile Crusher

Final Size: 0-80mm

Capacity: 60-350t/h

Leave Message Chat Now

Description Features Parameter Recommend

Description

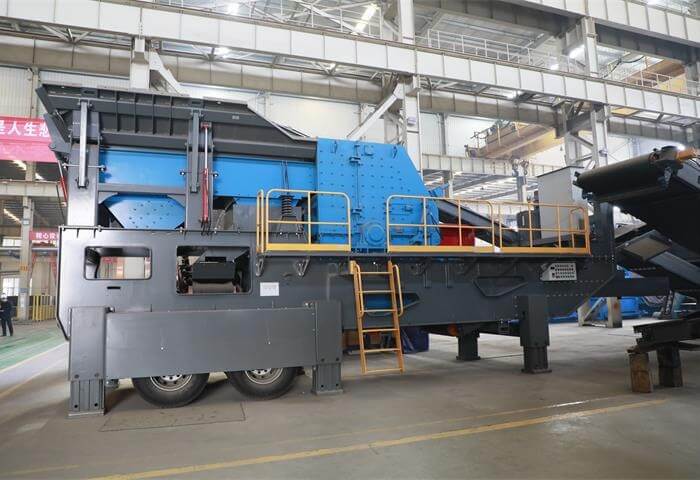

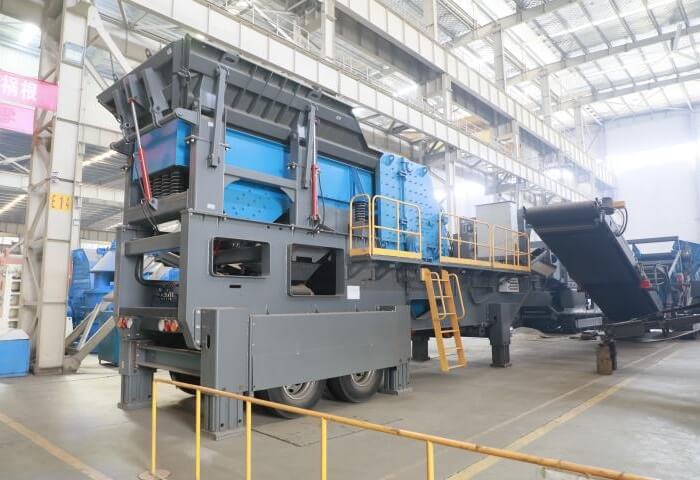

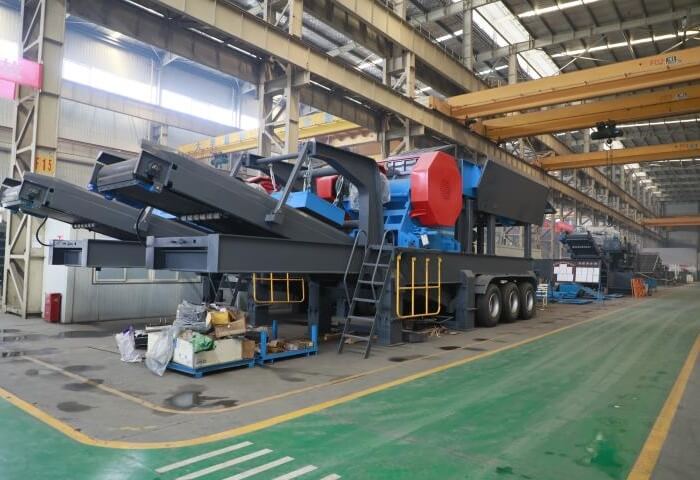

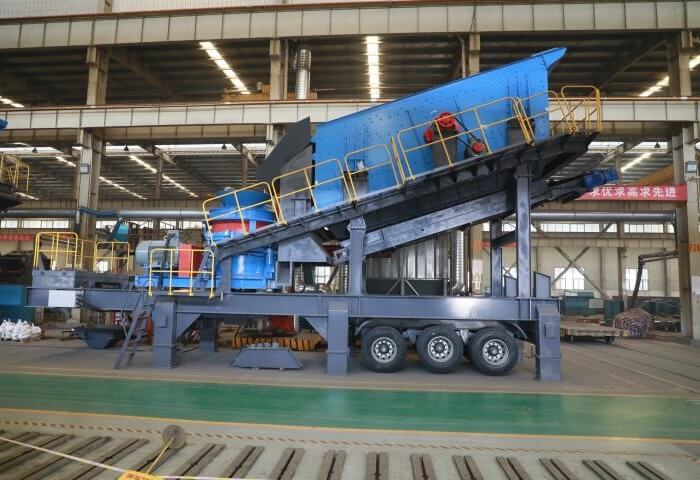

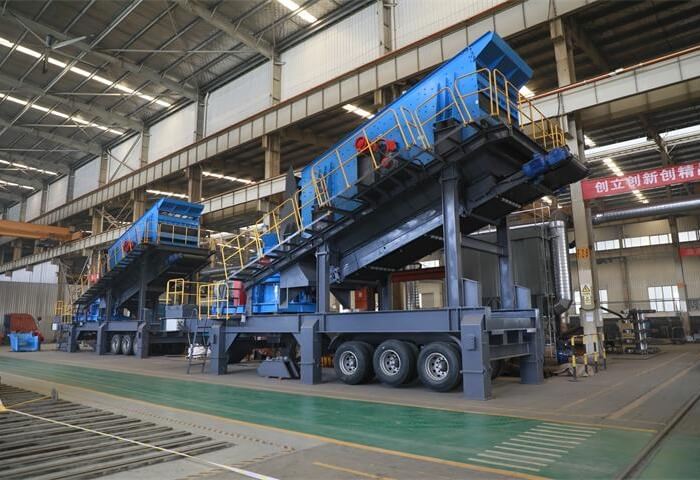

YD Series Wheel Type Mobile Crushing and Screening Plant is assembled by hopper,grizzly vibrating feeder, primary crusher, vibrating screen, secondary crusher, fine crusher, mobile conveyor, sand washer, and electronic controller.
It has extensive adaptability and advantage. It is widely used in crushing and screening works of high express way, railway, metallurgy, mining industry, construction which need to move and transfer.

Features

It is convenient to do transportation and transition applying standard wheel, axis and steering shaft.
Flexible configuration meet the different projects need, it can be divided into primary crushing stage, secondary crushing stage and fine crushing stage, three stages crushing system can work independently.
Every crushing stage is mobile and flexible combination with features of light weight, short length, well-adapted and flexibility.
Multi-function vehicle equipment with features of high performance, high efficiency and reliable.
Complete and easy to install, it can start production after connect the power.
Simple operation, which can be set to be integrated operation control or chain control.

Parameter

Choose the Best Match for You

Model			YD-60	YD-120	YD-150	YD-200	YD-300
Final Size (mm)			0-40	0-80	0-80	0-80	0-80
Capacity (t/h)			60-80	80-120	120-150	150-200	200-350
Primary Crushing	Feeder		GZD300x95	ZSW380x95	ZSW420X110	ZSW900x100	ZSW500X130
Primary Crushing	Crusher		DHKS3020	ASD3625	C1008	JC110	JC125
Secondary Crushing	Vibrating Screen		3YA1545	3YA1860	3YK2160	3YK2460	3YK2475
	Secondary Crusher	Soft Rock	PFQ1110	PFQ1310	PFQ1313	PFQ1315	PFQ1320
	Secondary Crusher	Hard Rock	GPY100-MF	GPY100-EC	GPY100S	GPY200S	GPY200S
Fine Crushing	Vibrating Screen		3YA1536	3YK1545	3YK2160	3YK2460	3YK24
Fine Crushing	Sand Making Machine		PL-700(D)	PL-850(D)	PL-850(D)	PL-1000(D)	PL-1200(D)
Auxiliary Part			It is optional to add and design mobile conveyor, iron collector and electronic controller for the customers.

Case story

Visible benefit improvement, AOWEI helps them do that

Production Site in Yunnan

Project summary

1 RHP500 Multi-Cylinder Cone Crusher
1 RVSI-1263 Vertical Shaft Impact Crusher
2 3YA2470 Vibrating Screens

Production Site in Sichuan

Project summary

1 RC160 Jaw Crusher
2 RVSI-1263 Vertical Shaft Impact Crushers
1 2PG1210 Double Roller Crusher

Production Site in Xinyang

Project summary

2 RHP500 Multi-Cylinder Hydraulic Cone Crushers
1 RGP500S Single-Cylinder Hydraulic Cone Crusher

Production Site in Qinghai

Project summary

1 ZSW2160 Feeder
1 RC160 Jaw Crusher
1 PE9001200 Jaw Crusher 2 PE7501060 Jaw Crushers
4 PEX300*1300 Fine Jaw Crushers
2 RNP1315 Impact Crushers
1 3YA3680 Vibrating Screen
1 2YA3070 Vibrating Screen
1 3YA2470 Vibrating Screen
